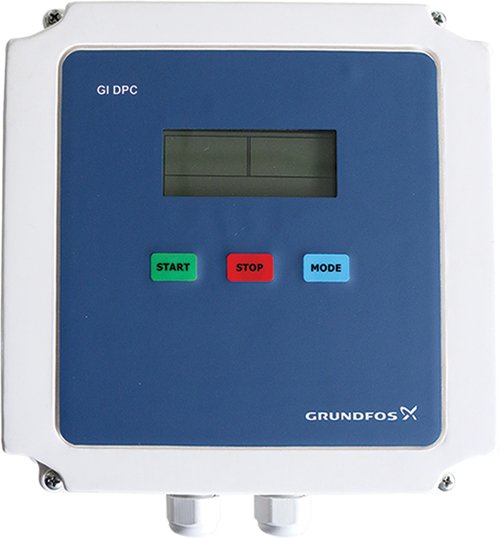

Automatic Control Panel

    • GI DPC is very useful in water and wastewater applications, be it water transfer, tank filling, tank emptying or even pressure boosting in Hydro-pneumatic applications.
    • It is an ideal choice for residential, industrial or institutional segments where water and energy conservation is of utmost importance.
    Category:
      • Dry run protection without installing a float switch
      • DIP switch settings to make it suitable for different applications
      • Motor stalled protection
      • Transient surge protection
      • Memory function when power off & during power recovery
      • Auto/manual switch
      • Liquid level probes (in case of fully automatic models)
      • LCD screen displays pump running information
      • Push button calibration
      • Overload protection
      • Under voltage protection (fixed settings)
      • Over voltage protection (fixed settings)
      • Visual & audio alarm for fault prompt
      • Rated input voltage : AC 220V / 50 Hz Single Phase
      • Rated output current (amperes) : 1.5 to 15 A
      • Trip response time of overload : 5 sec – 5 min
      • Trip response time short circuit : Less than 0.1 sec
      • Trip response time of under / over voltage : Less than 5 sec
      • Trip response time of dry run : 6 sec
      • Recovery time of under / over voltage : 5 min
      • Recovery time of dry run : 30 min (or this can be set manually)
      • Permissible ambient temperature : Up to 55 Deg C
      • Degree of protection : IP 54
      • Unit dimensions (L X W X H) : 225 x 225 x 100 mm
      • Unit weight : 1.5 Kg
